Jaro Muller's Ellipse 3
The Ellipse 3 is Jaro's latest
design for F3B. There is a choice of two variants -
- four servos in the wing
- two wing servos for the
ailerons + 1 heavy duty flap servo in the fuselage.
Photos by Steve Cooper.
All zoomed images are 640*480.
Click
to zoom

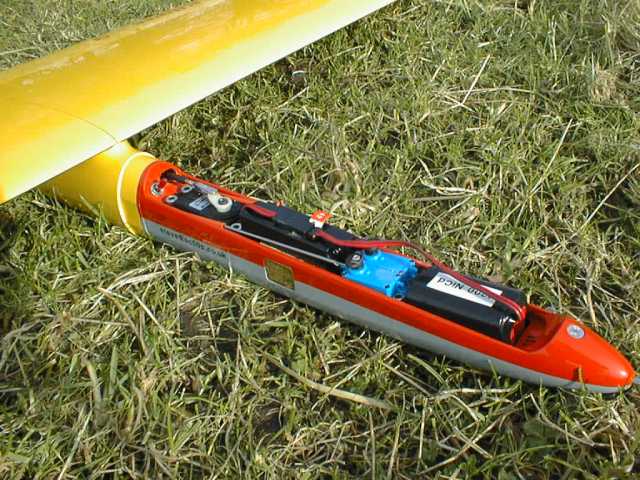

Volz Micromaxx servos are used here for the V-tail,
with a single heavy duty servo for flaps. Ballast is inserted
from underneath

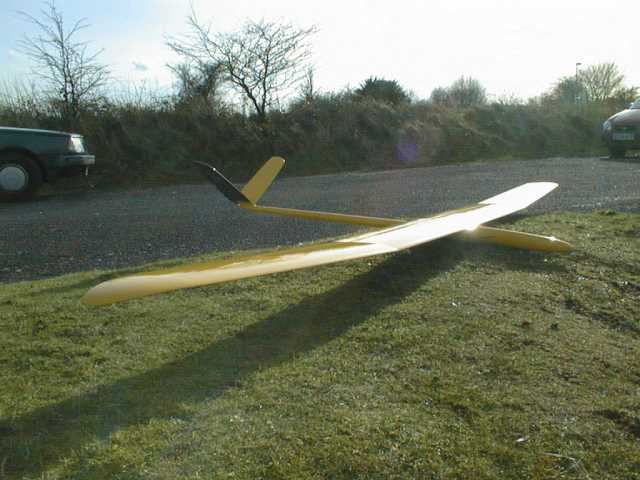

Note
downward curve of tips.

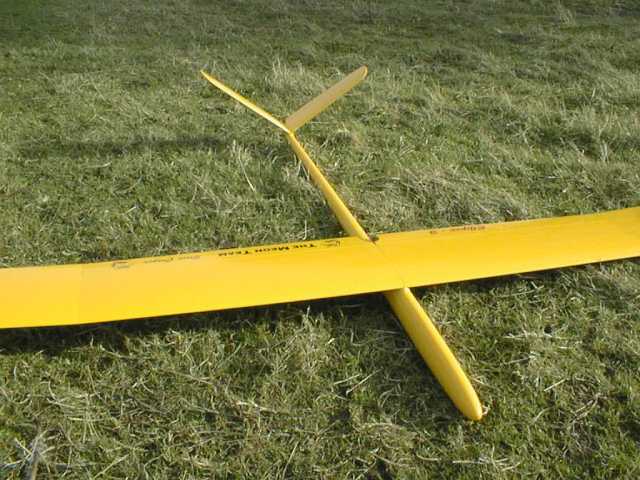

Wing is
in two pieces with a substantial carbon joiner. The fuselage is
very slim.

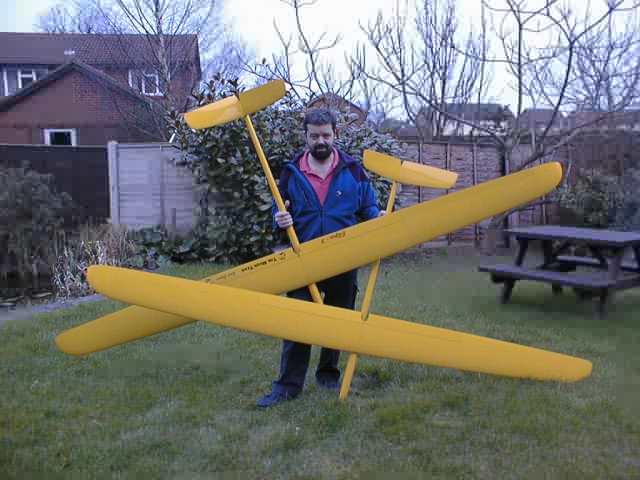

Steve with
one three-servo and one four-servo. No I don't know which is
which either!
Volz Micromaxx servos are used here for the V-tail,
with a single heavy duty servo for flaps. Ballast is inserted
from underneath
Note
downward curve of tips.
Wing is
in two pieces with a substantial carbon joiner. The fuselage is
very slim.
Steve with
one three-servo and one four-servo. No I don't know which is
which either!
