Crow-aware elevator trim


Description

This popular script is for gliders with crow brakes. It allows you to optimise the trim over the full range of crow, just using the regular elevator trim.

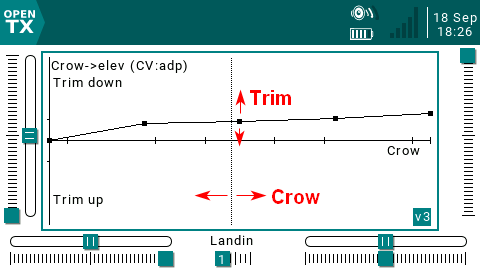

The script repurposes the elevator trimmer so that it bends the crow compensation curve. When you click the trim, the script adjusts the appropriate point on the curve. The process is transparent; there's no need to look at the screen.

The script runs on any OpenTX or EdgeTX transmitter. All configuration data is stored in a curve and so travels with the model setup.

For more background, see "Crow-aware adaptive elevator trim" (blog post). Note: this script is human-created, and human-supported.

All users : if using v3.3, please upgrade to v3.4 (fixes a bug introduced in v3.3)
RadioMaster TX16S Mk III users: please use v3.4 or above.

Download

Crow aware trim script v3.4

Requirements

  • Any mono or colour screen tx
  • OpenTX 2.2 or above
  • EdgeTX 2.4 or above
