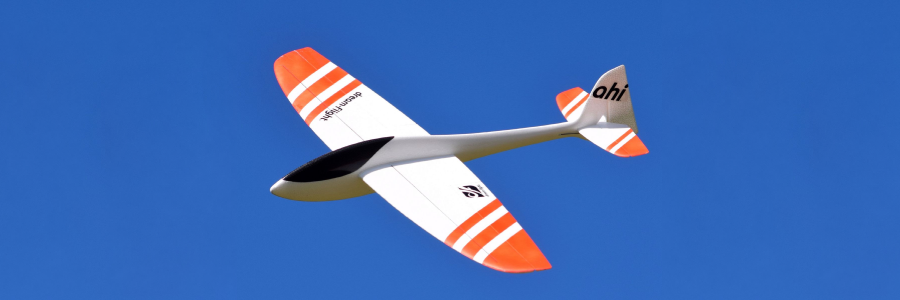

Dreamflight Ahi

Ahi: template for 4-servo slopers

Current version 1.0.0 (2018-10-15)


Ahi is designed for 4-channel aerobatic slope soarers such as: Ahi, Phase 6, Voltij etc. Key features:

The setup also features a special 'CAL' mode, for quick and precise adjustment of control surface travel and centring.

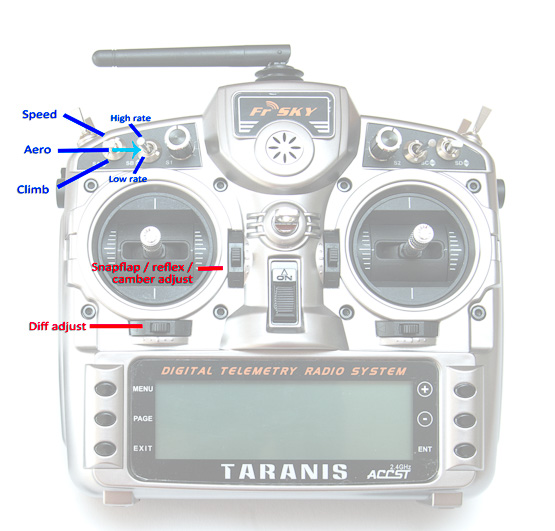

Taranis layout

X9D default interface, showing flight modes , mix adjusters.
Switch layout can be customised



For 4-servo slope soarers

Cross- or T-tail

Any stick mode

Flight modes

Aero-Lo, Aero-Hi, Climb, Speed

Voice confirmation

Switch customisations

Trimming adjusters

Adjuster for aileron diff

Adjuster for camber

Adjuster for snapflap

Adjuster for reflex

Control surface calibration

dedicated 'CAL' mode


Ahi v1.0.0

Minimim requirements

  • OpenTx: v2.2.1 or EdgeTX 2.7.1 or above


For list of changes see Version history


Feedback and queries are always welcome - I can be contacted here.
