F3F: template for 6-servo F3F/sport slopers

Current version 6.2 (2024-12-14)

Winner 2019 Winter league Champion of Champions

Winner 2018 English Open F3F

Description

The template of choice for slope soarers with 6 servos. It's undergone continuous development since its release in 2013, and is well proven in F3F competition in the UK and abroad.

Version 6.2 offers easy customisation of control and switch layout, regardless of transmitter type.

Key features :

Quick setup
Comprehensive mixing for F3F
In-flight adjustment of key mixers
New in v6.0: Simple crow compensation adjustment
New in v6.1: Easy assignment of switches and controls
Detailed setup guide
[optional] Lua script for advanced snapflap tuning

The setup features a special 'CAL' mode, for quick and precise adjustment of control surface travel & tracking.

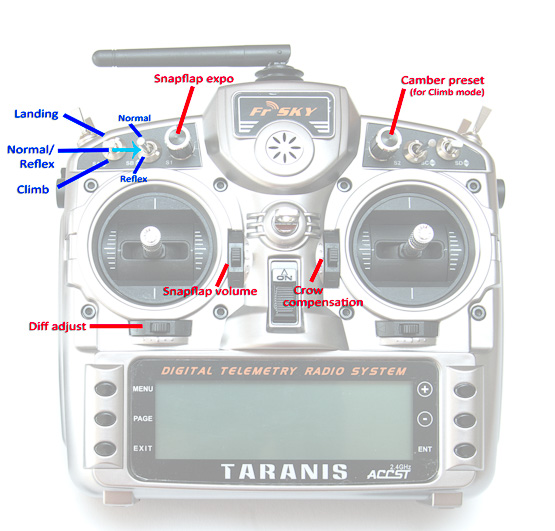

X9D default interface, showing flight modes , mix adjusters.
Switch layout can be customised for any supported transmitter

Specifications

Application

For 6-servo gliders

V-, T- or X-tail

Any stick mode

Flight modes

Normal/Reflex, Climb, Landing

Optional Pump mode

Voice confirmation

FM switches customisable

Real time adjusters

Adjuster for aileron diff

Adjuster for camber

Adjuster for snapflap volume

Adjuster for snapflap expo

Adjuster for crow compensation

Crow functions

Roll rate enhancement mixes

Real time compensation adjustment

Compensation curve

'Autocrow' option

Adjustable deadband on crow stick

Control surface calibration

Special 'CAL' mode

5-point balancing curve for flaps

Optional

Advanced snapflap Lua script supplied

Download

F3F v6.2.0

Minimum requirements

Transmitter with momentary switch and pot/slider
OpenTX: 2.3.15 or EdgeTX 2.7.1 (or greater)

Files

For previous versions, see Version history

Links

Blog: designing a transmitter setup for F3F

Contact

Feedback and queries are always welcome - I can be contacted here.
